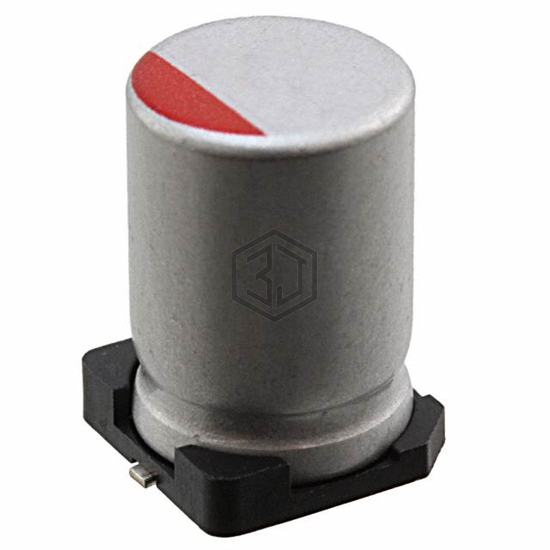

CAP ALUM POLY 1500UF 2.5V SMD
RHS0E152MCN1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 1500UF 2.5V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can - SMD.
In Stock: 2,398
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 9mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 540 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.461" (11.70mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 2R5SVPT1500M | Panasonic Electronic Components | CAP ALUM POLY 1500UF 20% 2.5V SM | 81% | View |
| 2R5SVT1500M | Panasonic Electronic Components | CAP ALUM POLY 1500UF 20% 2.5V SM | 81% | View |
| 2R5SVPC1500M | Panasonic Electronic Components | CAP ALUM POLY 1500UF 2.5V SMD | 81% | View |
| PCJ0G152MCL4GS | Nichicon | CAP ALUM POLY 1500UF 20% 4V SMD | 79% | View |
| MAL218097709E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 1500UF 20% 4V SMD | 76% | View |
| PCJ0J152MCL9GS | Nichicon | CAP ALUM POLY 1500UF 6.3V SMD | 71% | View |
Submit your RFQ for RHS0E152MCN1GS and get a quote within 24 hours.
