CAP ALUM POLY 33UF 20% 16V SMD

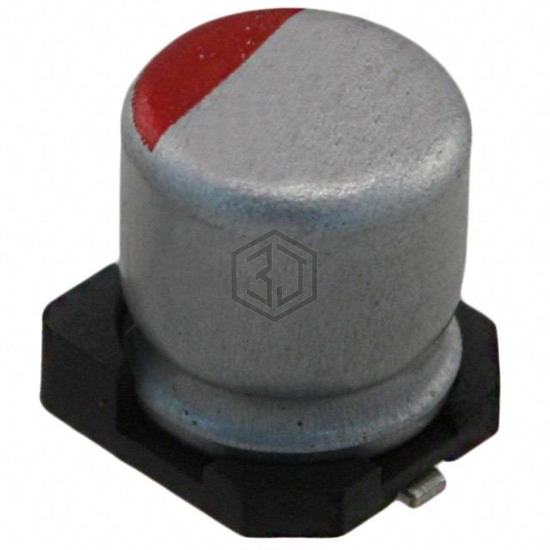

RFS1C330MCN1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 33UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 6,182
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 35mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 207 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.07 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCV1J330MCL1GS | Nichicon | CAP ALUM POLY 33UF 20% 63V SMD | 69% | View |
| PCX1H330MCS1GS | Nichicon | CAP ALUM POLY 33UF 20% 50V SMD | 69% | View |
| APXA100ARA330ME60G | United Chemi-Con | CAP ALUM POLY 33UF 20% 10V SMD | 65% | View |
| A767KS336M1KLAE045 | KEMET | CAP ALUM POLY 33UF 20% 80V SMD | 62% | View |
| A767KN336M1VLAE031 | KEMET | CAP ALUM POLY 33UF 20% 35V SMD | 58% | View |
| A768KS336M1KLAE038 | KEMET | CAP ALUM POLY 33UF 20% 80V SMD | 50% | View |
