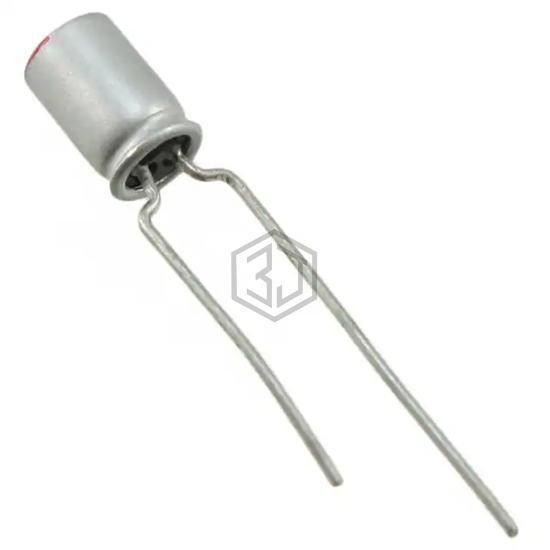

CAP ALUM POLY 330UF 20% 6.3V T/H
RF80J331MDN1PX is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 330UF 20% 6.3V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 7,773
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 11mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 370 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A758EK337M0JAAE016 | KEMET | CAP ALUM POLY 330UF 20% 6.3V T/H | 94% | View |
| A750EK337M1AAAE016 | KEMET | CAP ALUM POLY 330UF 20% 10V T/H | 69% | View |
| PLS1C331MDO1 | Nichicon | CAP ALUM POLY 330UF 20% 16V T/H | 64% | View |
| 870235374006 | Würth Elektronik | CAP ALUM POLY 330UF 20% 16V T/H | 62% | View |
| A750KW337M1VAAE020 | KEMET | CAP ALUM POLY 330UF 20% 35V T/H | 62% | View |
| RS80E331MDNASQJT | Nichicon | CAP ALUM POLY 330UF 20% 2.5V T/H | 59% | View |
