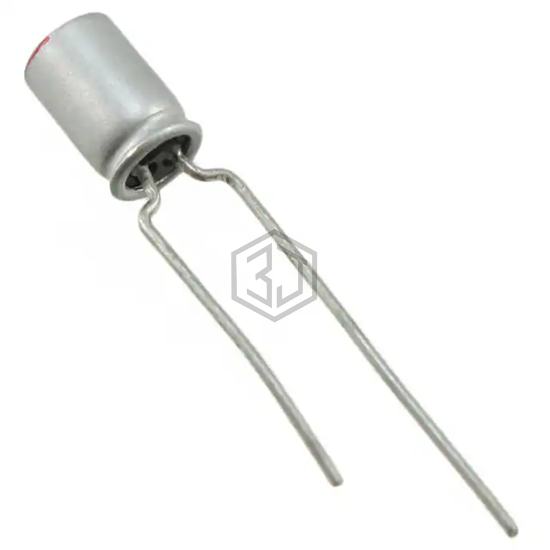

CAP ALUM POLY 100UF 20% 2.5V T/H
RF80E101MDN1PX is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 100UF 20% 2.5V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 7mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 420 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for RF80E101MDN1PX and get a quote within 24 hours.
