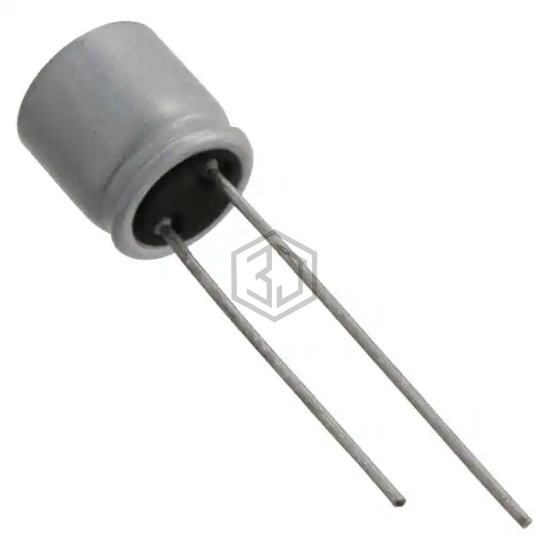

CAP ALUM POLY 560UF 20% 2.5V T/H
RE50E561MDN1KX is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 560UF 20% 2.5V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can.
In Stock: 1,329
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 5mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 630 mA @ 120 Hz |
| Ripple Current @ High Frequency | 6.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APSF2R5ELL561MF08S | United Chemi-Con | CAP ALUM POLY 560UF 20% 2.5V T/H | 98% | View |
| RL80E561MDN1 | Nichicon | CAP ALUM POLY 560UF 20% 2.5V T/H | 98% | View |
| RF80E561MDN1 | Nichicon | CAP ALUM POLY 560UF 20% 2.5V T/H | 81% | View |
| PLS0G561MCO6TD | Nichicon | CAP ALUM POLY 560UF 20% 4V T/H | 74% | View |
| PLF0G561MCO6 | Nichicon | CAP ALUM POLY 560UF 20% 4V T/H | 74% | View |
| APS-100ETD561MJC5S | United Chemi-Con | CAP ALUM POLY 560UF 20% 10V T/H | 66% | View |
Submit your RFQ for RE50E561MDN1KX and get a quote within 24 hours.
