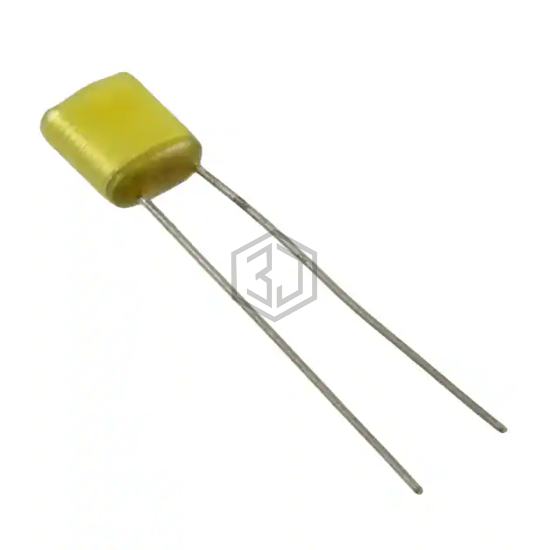

CAP FILM 0.027UF 10% 50VDC RAD
QYX1H273KTP is a Film Capacitors manufactured by Nichicon. CAP FILM 0.027UF 10% 50VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 50V, package / case Radial.
In Stock: 7,749
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.027 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polyester |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.256" L x 0.138" W (6.50mm x 3.50mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.138" (3.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-E6273JF | Panasonic Electronic Components | CAP FILM 0.027UF 5% 630VDC RAD | 71% | View |
| MKP385327200JKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.027UF 5% 2KVDC RADIAL | 71% | View |
| BFC247954273 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.027UF 5% 400VDC RAD | 71% | View |
| MKP385E32712JFP2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.027UF 5% 1.25KVDC RAD | 71% | View |
| MKP385E3272BKKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.027UF 10% 2.5KVDC RAD | 71% | View |
| MKP385327040JC02G0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.027UF 5% 400VDC RAD | 71% | View |
