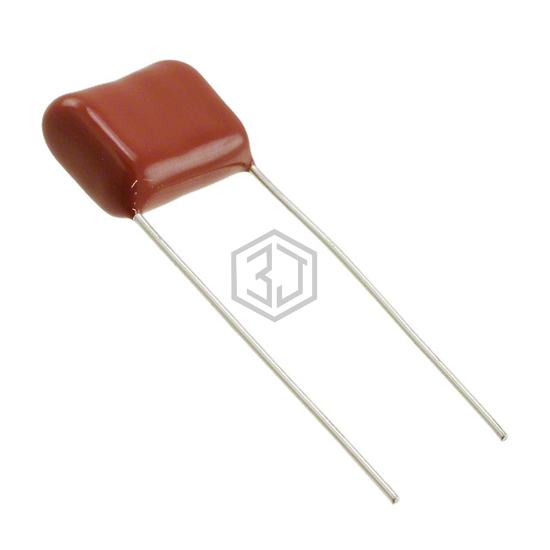

CAP FILM 0.015UF 10% 630VDC RAD
QXT2J153KRPT is a Film Capacitors manufactured by Nichicon. CAP FILM 0.015UF 10% 630VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 8,288
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.015 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 300V |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.748" L x 0.311" W (19.00mm x 7.90mm) |
| Height - Seated (Max) | 0.665" (16.90mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-UBAF153KA | Panasonic Electronic Components | CAP FILM 0.015UF 10% 300VAC RADI | 100% | View |
| ECQ-UAAF153M | Panasonic Electronic Components | CAP FILM 0.015UF 20% 275VAC RADI | 98% | View |
| R46KI21504001M | KEMET | CAP FILM 0.015UF 20% 560VDC RAD | 97% | View |
| BFC233862153 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 20% 1KVDC RAD | 94% | View |
| BFC233863153 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 10% 1KVDC RAD | 94% | View |
| ECQ-E4153KFW | Panasonic Electronic Components | CAP FILM 0.015UF 10% 400VDC RAD | 92% | View |
Submit your RFQ for QXT2J153KRPT and get a quote within 24 hours.
