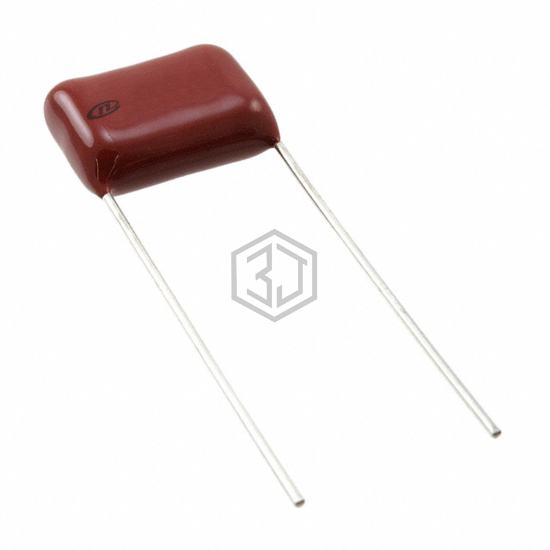

CAP FILM 0.022UF 10% 400VDC RAD
QXT2G223KRPT is a Film Capacitors manufactured by Nichicon. CAP FILM 0.022UF 10% 400VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 400V, package / case Radial.
In Stock: 8,346
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.022 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 200V |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.748" L x 0.276" W (19.00mm x 7.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PME271M522MR30 | KEMET | CAP FILM 0.022UF 20% 275VAC RAD | 94% | View |
| BFC247962223 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 5% 630VDC RAD | 94% | View |
| BFC246740223 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 10% 630VDC RAD | 91% | View |
| F339MX232231MDI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 20% 630VDC RAD | 88% | View |
| MKP385E32285KFI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 10% 850VDC RAD | 84% | View |
| R413I222050M1M | KEMET | CAP FILM 0.022UF 20% 1KVDC RAD | 82% | View |
