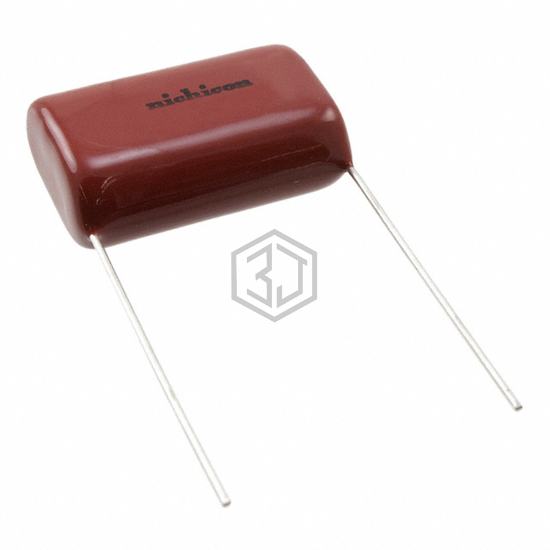

CAP FILM 0.68UF 10% 630VDC RAD
QXP2J684KRPT is a Film Capacitors manufactured by Nichicon. CAP FILM 0.68UF 10% 630VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 6,265
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.68 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 200V |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.520" W (31.50mm x 13.20mm) |
| Height - Seated (Max) | 0.906" (23.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECW-FA2J684J4 | Panasonic Electronic Components | CAP FILM 0.68UF 5% 630VDC RADIAL | 100% | View |
| QXK2G684KTP7ZHFT | Nichicon | CAP FILM 0.68UF 10% 400VDC RAD | 94% | View |
| F1778468K2ILB0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 10% 630VDC RAD | 94% | View |
| BFC233410684 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 10% 400VDC RAD | 89% | View |
| F339X146848MKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 20% 1KVDC RADIAL | 82% | View |
| PHE450RR6680JR06L2 | KEMET | CAP FILM 0.68UF 5% 1.6KVDC RAD | 71% | View |
