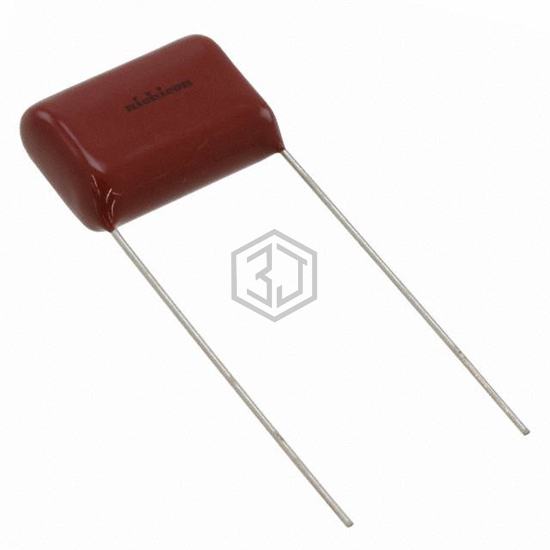

CAP FILM 0.22UF 10% 400VDC RAD
QXP2G224KRPT is a Film Capacitors manufactured by Nichicon. CAP FILM 0.22UF 10% 400VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 400V, package / case Radial.
In Stock: 1,593
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.22 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 160V |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.827" L x 0.362" W (21.00mm x 9.20mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.689" (17.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R75IF3220CKA0J | KEMET | CAP FILM AUTO POLYPROP RAD | 92% | View |
| JMPP224J0630DH1024 | Lumimax Optoelectronic Technology | CAP FILM 0.22uF 5% 630VDC RAD | 92% | View |
| MKP385E42263JII2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 5% 630VDC RAD | 89% | View |
| F339X142248KIP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 10% 1KVDC RADIAL | 72% | View |
| BFC236715224 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 10% 63VDC RADIAL | 59% | View |
| MKP385E4222BJPP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 5% 2.5KVDC RAD | 56% | View |
