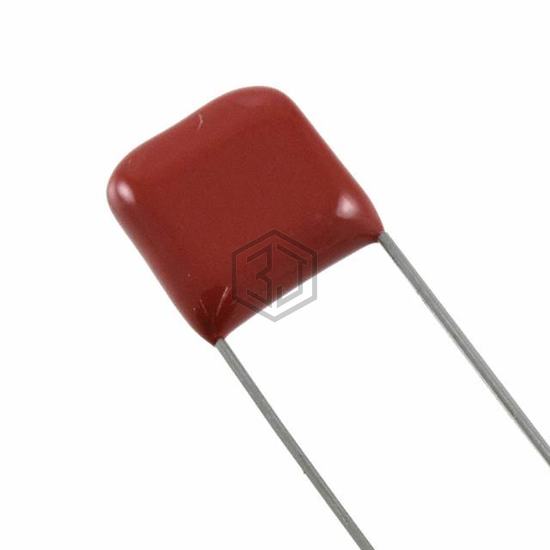

CAP FILM 0.047UF 10% 250VAC RAD
QXL2E473KTPT is a Film Capacitors manufactured by Nichicon. CAP FILM 0.047UF 10% 250VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - ac 250V, package / case Radial.
In Stock: 5,727
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.047 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.531" L x 0.252" W (13.50mm x 6.40mm) |
| Height - Seated (Max) | 0.598" (15.20mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-E1473JF | Panasonic Electronic Components | CAP FILM 0.047UF 5% 100VDC RAD | 100% | View |
| R60PF2470AA30J | KEMET | CAP FILM AUTOMOTIVE | 98% | View |
| BFC233990005 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 20% 630VDC RAD | 96% | View |
| X2Q2473KQ1B0180110050ES0 | Songtian Electronics Co., Ltd - use 4378 | X2 305VAC 47NF 10% P=15MM W18*H1 | 96% | View |
| MKP385E34710KFI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 10% 1KVDC RAD | 94% | View |
| R82EC2470Z360K | KEMET | CAP FILM 0.047UF 10% 100VDC RAD | 76% | View |
