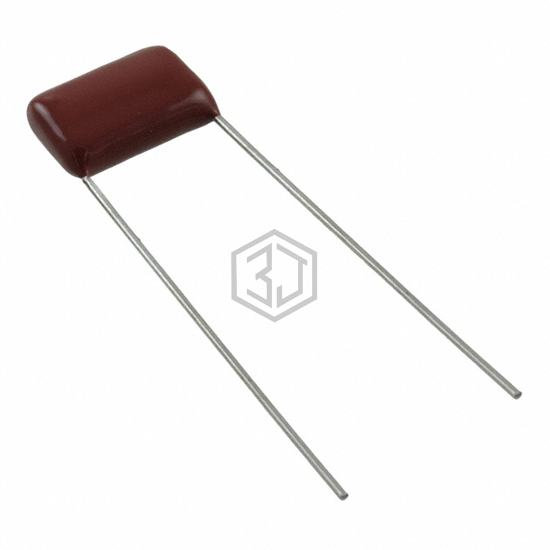

CAP FILM 0.015UF 10% 250VAC RAD
QXL2E153KTPT is a Film Capacitors manufactured by Nichicon. CAP FILM 0.015UF 10% 250VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - ac 250V, package / case Radial.
In Stock: 5,444
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.015 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.531" L x 0.185" W (13.50mm x 4.70mm) |
| Height - Seated (Max) | 0.445" (11.30mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-E2153KB3 | Panasonic Electronic Components | CAP FILM 0.015UF 10% 250VDC RAD | 100% | View |
| BFC236863153 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 10% 630VDC RAD | 100% | View |
| F17723152230 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 20% 630VDC RAD | 96% | View |
| BFC247036153 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 5% 250VDC RAD | 92% | View |
| BFC237035153 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 10% 250VDC RAD | 92% | View |
| MKP1T021505B00KSSD | WIMA | CAP FILM 0.015UF 10% 1.6KVDC RAD | 83% | View |
