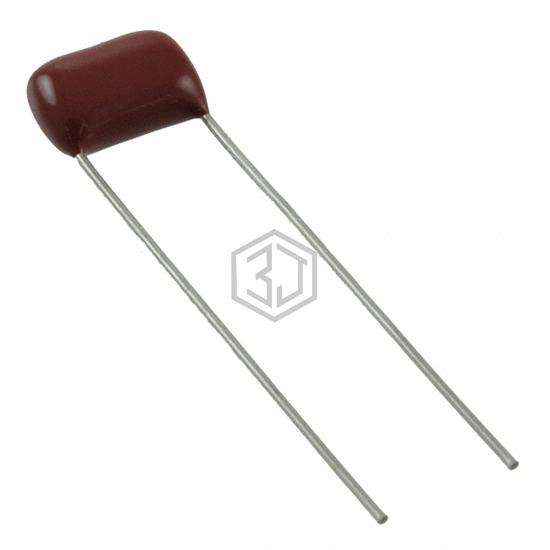

CAP FILM 0.047UF 10% 125VAC RAD
QXL2B473KTPT is a Film Capacitors manufactured by Nichicon. CAP FILM 0.047UF 10% 125VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - ac 125V, package / case Radial.
In Stock: 3,863
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.047 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.433" L x 0.201" W (11.00mm x 5.10mm) |
| Height - Seated (Max) | 0.406" (10.30mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-E10473RKF | Panasonic Electronic Components | CAP FILM 0.047UF 10% 1KVDC RAD | 100% | View |
| BFC236841473 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 10% 250VDC RAD | 96% | View |
| PHE426DJ5470JR05 | KEMET | CAP FILM 0.047UF 5% 100VDC RAD | 88% | View |
| R75PI247050H3J | KEMET | CAP FILM 0.047UF 5% 630VDC RAD | 88% | View |
| F861KM473M310C | KEMET | CAP FILM 0.047UF 20% 630VDC RAD | 84% | View |
| MKP385E34785KFM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 10% 850VDC RAD | 84% | View |
Submit your RFQ for QXL2B473KTPT and get a quote within 24 hours.
