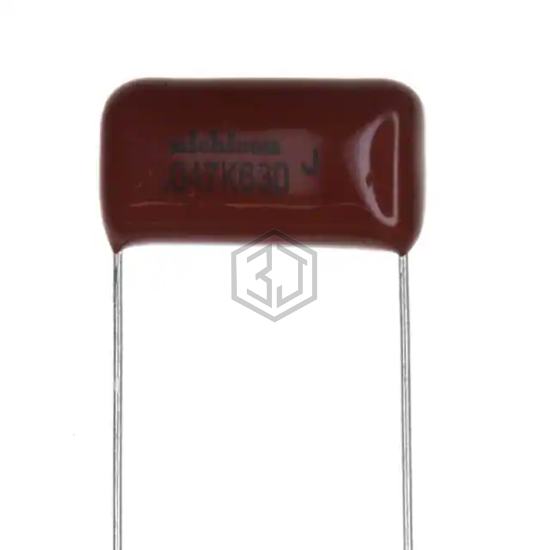

CAP FILM 0.047UF 10% 630VDC RAD
QXK2J473KTPTZH is a Film Capacitors manufactured by Nichicon. CAP FILM 0.047UF 10% 630VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 4,899
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.047 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.807" L x 0.244" W (20.50mm x 6.20mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.689" (17.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R71PF247050H6K | KEMET | CAP FILM METAL RAD POLYPROP | 98% | View |
| F1778347M2DLB0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 20% 630VDC RAD | 97% | View |
| F1778347M2FEB0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 20% 630VDC RAD | 97% | View |
| BFC233864473 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 20% 1KVDC RAD | 91% | View |
| MKP385E34740KFP2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 10% 400VDC RAD | 91% | View |
| B32672L7473K000 | EPCOS - TDK Electronics | CAP FILM 0.047UF 10% 1.3KVDC RAD | 80% | View |
Submit your RFQ for QXK2J473KTPTZH and get a quote within 24 hours.
