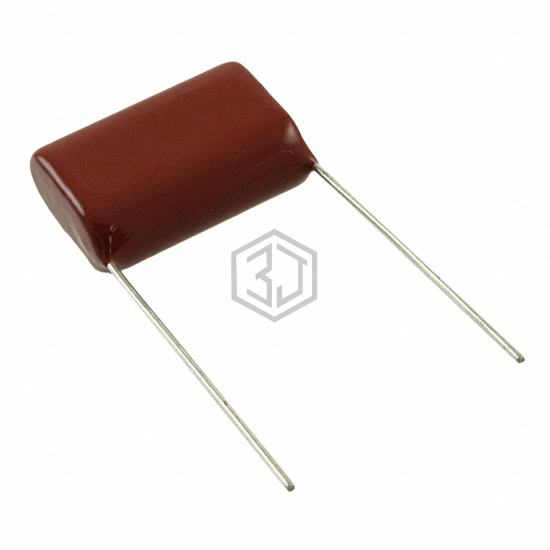

CAP FILM 0.33UF 10% 630VDC RAD
QXK2J334KTPTZH is a Film Capacitors manufactured by Nichicon. CAP FILM 0.33UF 10% 630VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 6,923
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.33 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.024" L x 0.429" W (26.00mm x 10.90mm) |
| Height - Seated (Max) | 0.819" (20.80mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECW-FD2J394K4 | Panasonic Electronic Components | CAP FILM 0.33UF 10% 630VDC RAD | 100% | View |
| 72818-22 | Iskra | KNB1560 U33 10% 275V R22.5 L4 | 99% | View |
| R463N333050H7K | KEMET | CAP FILM 0.33UF 10% 630VDC RAD | 97% | View |
| F339X243330MFP2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.33UF 20% 630VDC RAD | 97% | View |
| MKP385E43340JFI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.33UF 5% 400VDC RAD | 91% | View |
| MKS4F033302F00KSSD | WIMA | CAP FILM 0.33UF 10% 250VDC RAD | 81% | View |
Submit your RFQ for QXK2J334KTPTZH and get a quote within 24 hours.
