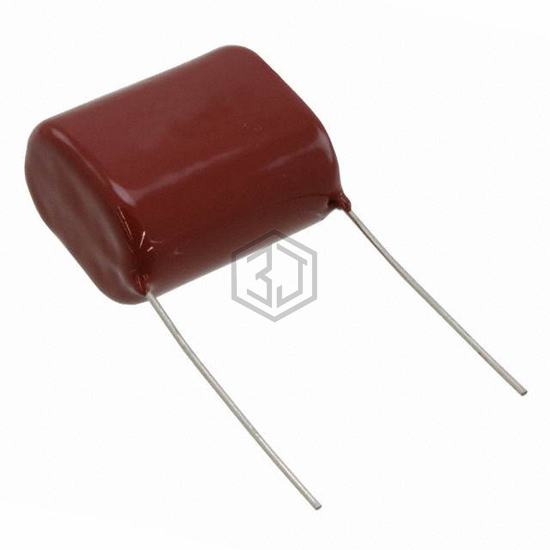

CAP FILM 2.2UF 10% 630VDC RADIAL
QXK2J225KTP is a Film Capacitors manufactured by Nichicon. CAP FILM 2.2UF 10% 630VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 9,290
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2.2 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.201" L x 0.728" W (30.50mm x 18.50mm) |
| Height - Seated (Max) | 1.142" (29.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| F339MX252231MKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.2UF 20% 630VDC RADIAL | 97% | View |
| MKP385522125JPM4T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.2UF 5% 1.25KVDC RAD | 82% | View |
| MKP385522125JPI4T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.2UF 5% 1.25KVDC RAD | 82% | View |
| R60IR4220AA30K | KEMET | CAP FILM 2.2UF 10% 250VDC RADIAL | 81% | View |
| MKP385522160JYI2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.2UF 5% 1.6KVDC RADIAL | 76% | View |
| R82CC4220Z370K | KEMET | CAP FILM 2.2UF 10% 50VDC RADIAL | 56% | View |
Submit your RFQ for QXK2J225KTP and get a quote within 24 hours.
