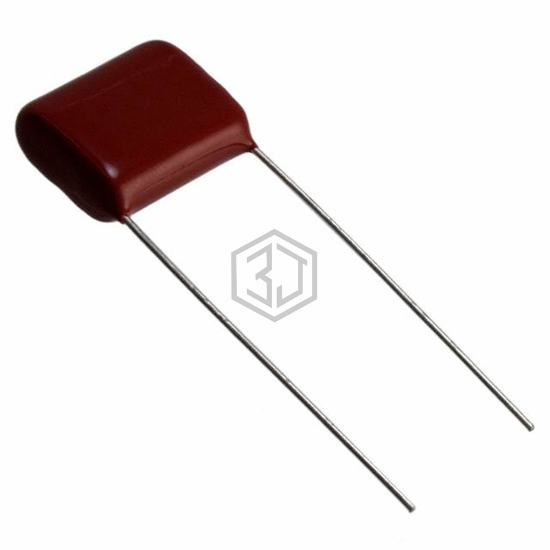

CAP FILM 0.33UF 10% 400VDC RAD
QXK2G334KTP is a Film Capacitors manufactured by Nichicon. CAP FILM 0.33UF 10% 400VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 400V, package / case Radial.
In Stock: 8,849
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.33 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 200V |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.728" L x 0.299" W (18.50mm x 7.60mm) |
| Height - Seated (Max) | 0.563" (14.30mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECW-FA2J334J4 | Panasonic Electronic Components | CAP FILM 0.33UF 5% 630VDC RADIAL | 92% | View |
| MKP385433063JII2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.33UF 5% 630VDC RADIAL | 92% | View |
| BFC247946334 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.33UF 5% 250VDC RADIAL | 90% | View |
| R71PI3330CK30K | KEMET | CAP FILM METAL RAD POLYPROP | 89% | View |
| MKP383433025JFM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.33UF 5% 250VDC RADIAL | 87% | View |
| F340Y243330JII2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.33UF 5% 1KVDC RAD | 82% | View |
