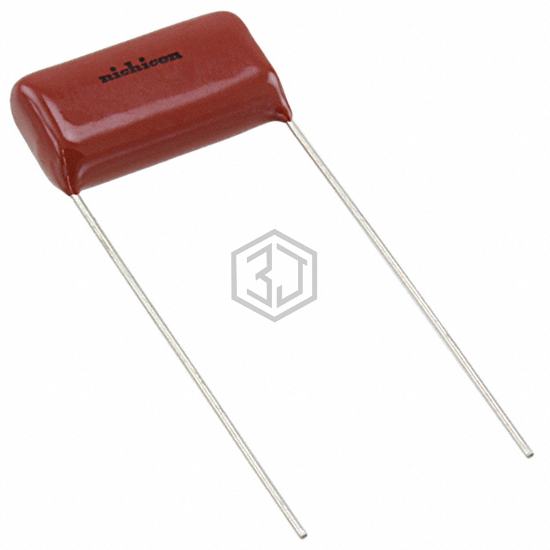

CAP FILM 0.22UF 10% 400VDC RAD
QXK2G224KTPTZH is a Film Capacitors manufactured by Nichicon. CAP FILM 0.22UF 10% 400VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 400V, package / case Radial.
In Stock: 1,108
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.22 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 200V |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.807" L x 0.303" W (20.50mm x 7.70mm) |
| Height - Seated (Max) | 0.547" (13.90mm) |
| Termination | PC Pins |
| Lead Spacing | 0.689" (17.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| QXK2G224JTP7FM | Nichicon | CAP FILM 0.22UF 5% 400VDC RAD | 100% | View |
| ECW-F2224JAB | Panasonic Electronic Components | CAP FILM 0.22UF 5% 250VDC RADIAL | 92% | View |
| R46KN322000M1K | KEMET | CAP FILM 0.22UF 10% 560VDC RAD | 91% | View |
| ECW-FE2J224QD | Panasonic Electronic Components | CAP FILM 0.22UF 10% 630VDC RAD | 89% | View |
| PHE844RD6220KR06L2 | KEMET | CAP FILM 0.22UF 10% 1KVDC RADIAL | 76% | View |
| BFC237086224 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 5% 100VDC RADIAL | 65% | View |
