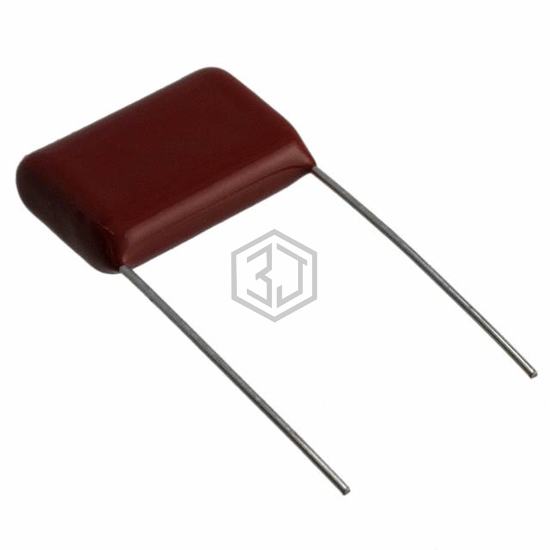

CAP FILM 1UF 10% 400VDC RADIAL
QXK2G105KTP is a Film Capacitors manufactured by Nichicon. CAP FILM 1UF 10% 400VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 400V, package / case Radial.
In Stock: 9,945
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 200V |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.004" L x 0.343" W (25.50mm x 8.70mm) |
| Height - Seated (Max) | 0.732" (18.60mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PHE426KD7100JR06L2 | KEMET | CAP FILM 1UF 5% 400VDC RADIAL | 99% | View |
| MKP1848C51060JK2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 5% 600VDC RADIAL | 93% | View |
| MKP385E51063KKI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 10% 630VDC RAD | 92% | View |
| 150105K250JE | Cornell Dubilier Electronics (CDE) | CAP FILM 1UF 10% 250VDC AXIAL | 90% | View |
| BFC233616105 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 20% 630VDC RADIAL | 89% | View |
| BFC233626105 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 20% 630VDC RADIAL | 88% | View |
Submit your RFQ for QXK2G105KTP and get a quote within 24 hours.
