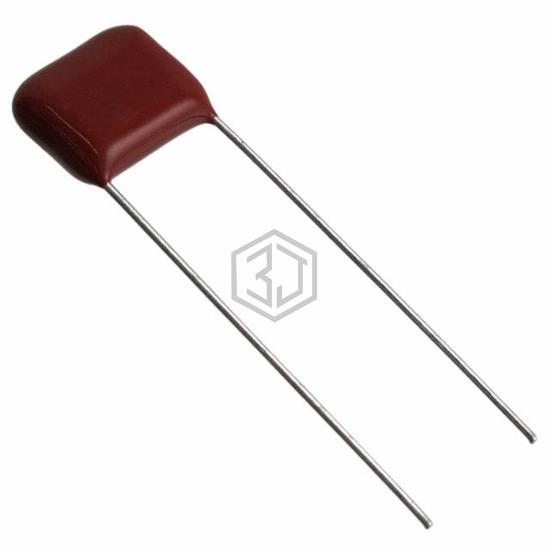

CAP FILM 0.1UF 10% 400VDC RADIAL
QXK2G104KTP is a Film Capacitors manufactured by Nichicon. CAP FILM 0.1UF 10% 400VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 400V, package / case Radial.
In Stock: 7,138
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.1 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 200V |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.531" L x 0.240" W (13.50mm x 6.10mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKS4G031002E00KSSD | WIMA | CAP FILM 0.1UF 10% 400VDC RADIAL | 100% | View |
| BFC237041104 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.1UF 10% 250VDC RADIAL | 90% | View |
| MKP385410025JB02G0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.1UF 5% 250VDC RADIAL | 90% | View |
| 74352-22 | Iskra | KNB1560 U1 20% 275V L5 R15 | 89% | View |
| 20771-16 | Iskra | KNB1560 U1 20% 300V L3 R10 | 87% | View |
| PHE450RF6100JR06L2 | KEMET | CAP FILM 0.1UF 5% 1.6KVDC RADIAL | 65% | View |
