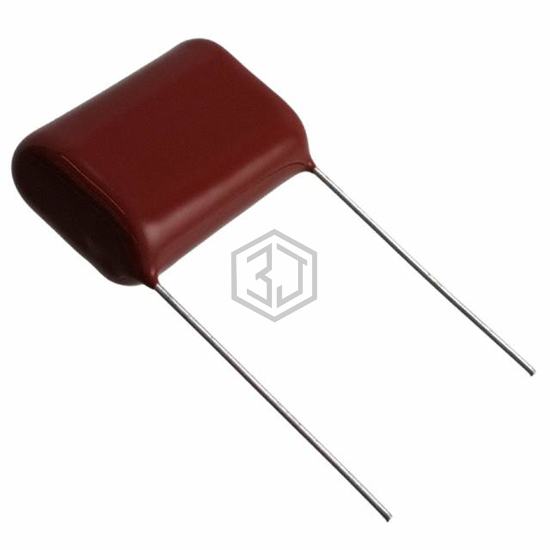

CAP FILM 6.8UF 10% 250VDC RADIAL
QXK2E685KTP is a Film Capacitors manufactured by Nichicon. CAP FILM 6.8UF 10% 250VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 250V, package / case Radial.
In Stock: 4,593
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6.8 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.201" L x 0.500" W (30.50mm x 12.70mm) |
| Height - Seated (Max) | 0.898" (22.80mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECW-F2685HA | Panasonic Electronic Components | CAP FILM 6.8UF 3% 250VDC RADIAL | 100% | View |
| MKS4G046807D00KSSD | WIMA | CAP FILM 6.8UF 10% 400VDC RADIAL | 87% | View |
| ECQ-UAAF685SA | Panasonic Electronic Components | CAP FILM 6.8UF 20% 275VAC RADIAL | 86% | View |
| PPB1404680KJL | Nichicon | FILM CAP BOXED RADIAL | 84% | View |
| R533R468050P0K | KEMET | CAP FILM 6.8UF 10% 630VDC RADIAL | 75% | View |
| F340X256830KPP2T0 | Vishay Beyschlag/Draloric/BC Components | MKP F340X2 6,8F 10% 305VAC | 75% | View |
Submit your RFQ for QXK2E685KTP and get a quote within 24 hours.
