CAP FILM 0.033UF 10% 250VDC RAD

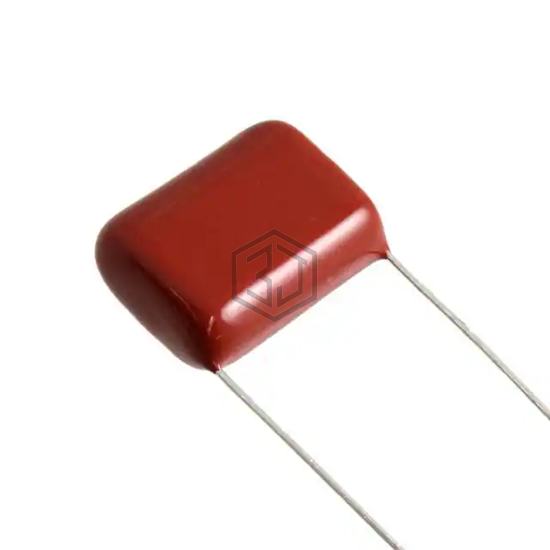

QXK2E333KTP7FG is a Film Capacitors manufactured by Nichicon. CAP FILM 0.033UF 10% 250VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 250V, package / case Radial.
In Stock: 8,872
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.033 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.433" L x 0.173" W (11.00mm x 4.40mm) |
| Height - Seated (Max) | 0.532" (13.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKT1818333254G | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 5% 250VDC RAD | 97% | View |
| F461KF333J160A | KEMET | CAP FILM POLYPROP RAD | 89% | View |
| MKP385E33363KFI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 10% 630VDC RAD | 79% | View |
| BFC237265333 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 10% 630VDC RAD | 78% | View |
| MKP383333160JIM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 5% 1.6KVDC RAD | 57% | View |
| MKP385E3332BKKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 10% 2.5KVDC RAD | 56% | View |
Submit your RFQ for QXK2E333KTP7FG and get a quote within 24 hours.
