CAP FILM 0.22UF 10% 250VDC RAD

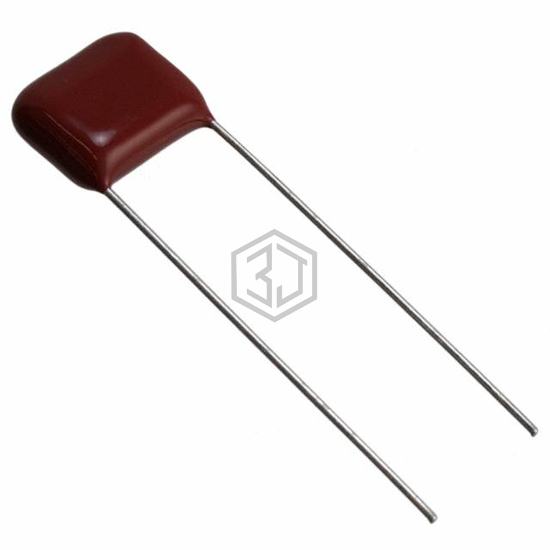

QXK2E224KTP is a Film Capacitors manufactured by Nichicon. CAP FILM 0.22UF 10% 250VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 250V, package / case Radial.
In Stock: 2,670
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.22 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.531" L x 0.232" W (13.50mm x 5.90mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| QXK2E224JTP | Nichicon | CAP FILM 0.22UF 5% 250VDC RAD | 100% | View |
| R60GF3220JF6AJ | KEMET | 0,22 U 160V | 89% | View |
| MKS4G032203G00KSSD | WIMA | CAP FILM 0.22UF 10% 400VDC RAD | 87% | View |
| F1778422M2F0R0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 20% 630VDC RAD | 75% | View |
| F339X142248KKM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 10% 1KVDC RADIAL | 62% | View |
| R76TR3220SE30K | KEMET | CAP FILM 0.22UF 10% 1.6KVDC RAD | 56% | View |
