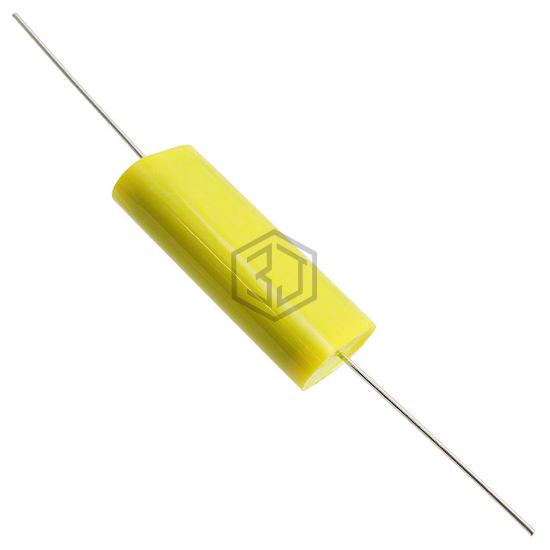

CAP FILM 1UF 10% 630VDC AXIAL
QAK2J105KTP is a Film Capacitors manufactured by Nichicon. CAP FILM 1UF 10% 630VDC AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 630V, package / case Axial.
In Stock: 2,053
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Size / Dimension | 0.866" W, 0.433" T x 1.732" L (22.00mm, 11.00mm x 44.00mm) |
| Height - Seated (Max) | - |
| Termination | PC Pins |
| Lead Spacing | - |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| QXL2B105KTPT | Nichicon | CAP FILM 1UF 10% 125VAC RADIAL | 100% | View |
| DMM6W1K-F | Cornell Dubilier Electronics (CDE) | CAP FILM 1UF 10% 630VDC RADIAL | 100% | View |
| 73398-22 | Iskra | KNB1560 1U 10% 275V L25 R27.5 | 100% | View |
| F1778510M3I0W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 20% 630VDC RADIAL | 100% | View |
| F1778510M3ICT0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 20% 630VDC RADIAL | 100% | View |
| 75096-22 | Iskra | KNB1530 1U 20% 300V L25 R27.5 | 99% | View |
