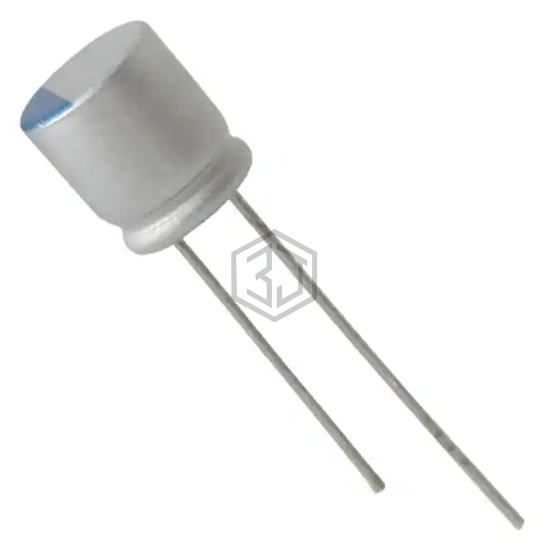

CAP ALUM POLY 33UF 20% 50V T/H
PLV1H330MCL1TD is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 33UF 20% 50V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 3,092
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Polymer |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 32mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.9 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
PLV1H330MCL1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 870055875003 | Würth Elektronik | CAP ALUM POLY 33UF 20% 63V T/H | 85% | View |
| 63SXE33M | Panasonic Electronic Components | CAP ALUM POLY 33UF 20% 63V T/H | 76% | View |
| 50SEK33M | Panasonic Electronic Components | CAP ALUM POLY 33UF 20% 50V T/H | 74% | View |
| 336ULR020MEF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 33UF 20% 20V T/H | 70% | View |
| 336AVG100MGBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 33UF 20% 100V T/H | 68% | View |
| RNS1D330MDS1PX | Nichicon | CAP ALUM POLY 33UF 20% 20V T/H | 67% | View |
Submit your RFQ for PLV1H330MCL1TD and get a quote within 24 hours.
