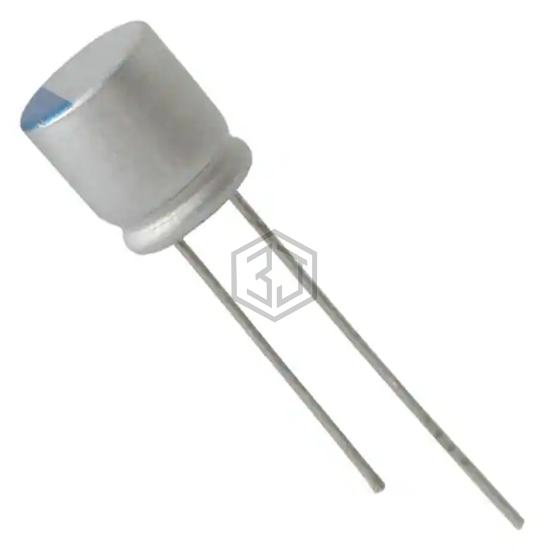

CAP ALUM POLY 18UF 20% 50V T/H
PLV1H180MCL1 is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 18UF 20% 50V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 9,368
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 18 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 48mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
PLV1H180MCL1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A759EK226M1JAAE054 | KEMET | CAP ALUM POLY 22UF 20% 63V TH | 71% | View |
| 32SEQP18M | Panasonic Electronic Components | CAP ALUM POLY 18UF 20% 32V T/H | 65% | View |
| APS-350ELL180MHB5S | United Chemi-Con | CAP ALUM POLY 18UF 20% 35V T/H | 65% | View |
| A759MS186M2CAAE090 | KEMET | CAP ALUM POLY 18UF 20% 160V T/H | 63% | View |
| 100SXE18MX | Panasonic Electronic Components | CAP ALUM POLY 18UF 20% 100V T/H | 57% | View |
| 63SXE18M | Panasonic Electronic Components | CAP ALUM POLY 18UF 20% 63V T/H | 55% | View |
Submit your RFQ for PLV1H180MCL1 and get a quote within 24 hours.
