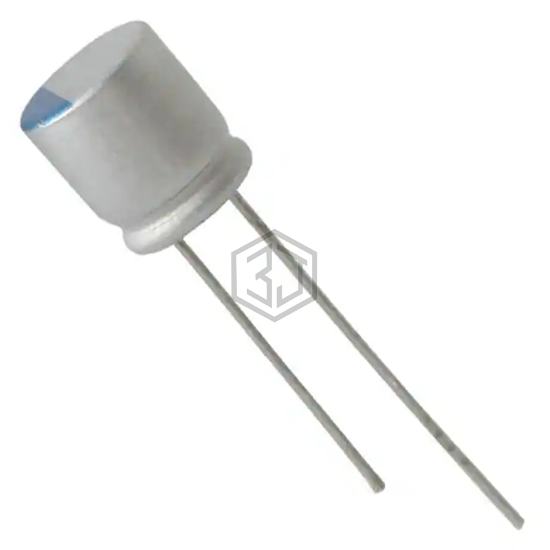

CAP ALUM POLY 56UF 20% 25V T/H
PLV1E560MCL1 is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 56UF 20% 25V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,950
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 38mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
PLV1E560MCL1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APSG250ELL560MF05S | United Chemi-Con | CAP ALUM POLY 56UF 20% 25V T/H | 86% | View |
| 25SEPF56M | Panasonic Electronic Components | CAP ALUM POLY 56UF 20% 25V T/H | 84% | View |
| PLF1D560MCL2TD | Nichicon | CAP ALUM POLY 56UF 20% 20V T/H | 80% | View |
| PLX1V560MDL1 | Nichicon | CAP ALUM POLY 56UF 20% 35V T/H | 79% | View |
| 10SEP56M+TSS | Panasonic Electronic Components | CAP ALUM POLY 56UF 20% 10V T/H | 71% | View |
| 870055875006 | Würth Elektronik | CAP ALUM POLY 56UF 20% 63V T/H | 69% | View |
Submit your RFQ for PLV1E560MCL1 and get a quote within 24 hours.
