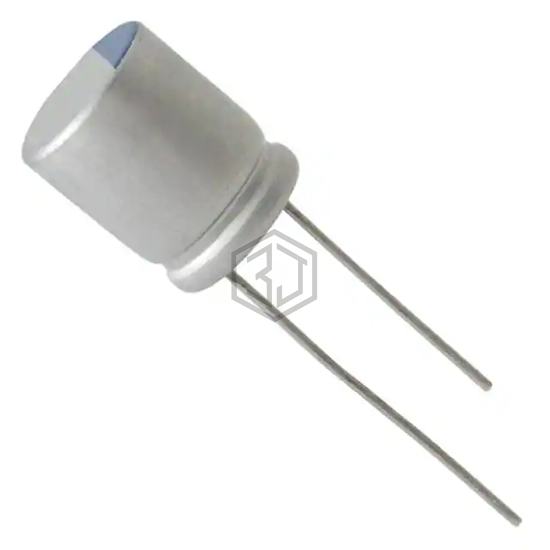

CAP ALUM POLY 120UF 20% 25V T/H
PLV1E121MDL1 is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 120UF 20% 25V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 8,289
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.8 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
PLV1E121MDL1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35SEPF120M | Panasonic Electronic Components | CAP ALUM POLY 120UF 20% 35V T/H | 71% | View |
| 35SEPF120M+T | Panasonic Electronic Components | CAP ALUM POLY 120UF 20% 35V T/H | 71% | View |
| UPE1V121MNN1012U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 71% | View |
| 127AVG050MGBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 120UF 20% 50V T/H | 69% | View |
| 10SEP120M+TSS | Panasonic Electronic Components | CAP ALUM POLY 120UF 20% 10V T/H | 69% | View |
| 127ALG050MGBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 120UF 20% 50V T/H | 68% | View |
Submit your RFQ for PLV1E121MDL1 and get a quote within 24 hours.
