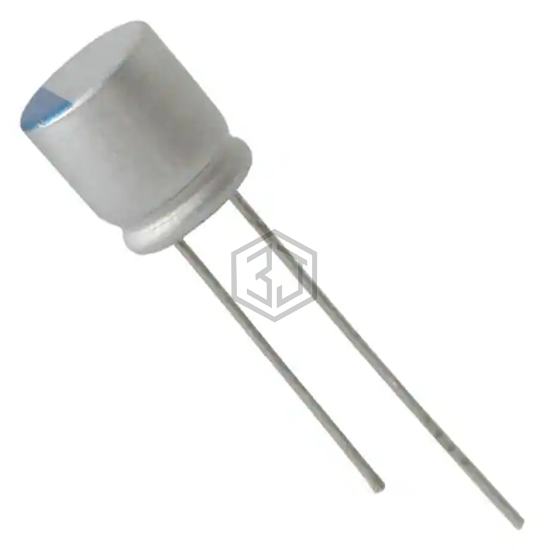

CAP ALUM POLY 150UF 20% 20V T/H
PLV1D151MCL1TD is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 150UF 20% 20V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 20 V, package / case Radial, Can.
In Stock: 630
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Polymer |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 27mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
PLV1D151MCL1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PLX1C151MCL1TD | Nichicon | CAP ALUM POLY 150UF 20% 16V T/H | 89% | View |
| 20SEQP150M+T | Panasonic Electronic Components | CAP ALUM POLY 150UF 20% 20V T/H | 88% | View |
| APS-200ELL151MJC5S | United Chemi-Con | CAP ALUM POLY 150UF 20% 20V T/H | 75% | View |
| 4SEP150M+TSS | Panasonic Electronic Components | CAP ALUM POLY 150UF 20% 4V T/H | 68% | View |
| UGV1V151MNN1012U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 67% | View |
| 157AVG035MFBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 150UF 20% 35V T/H | 64% | View |
Submit your RFQ for PLV1D151MCL1TD and get a quote within 24 hours.
