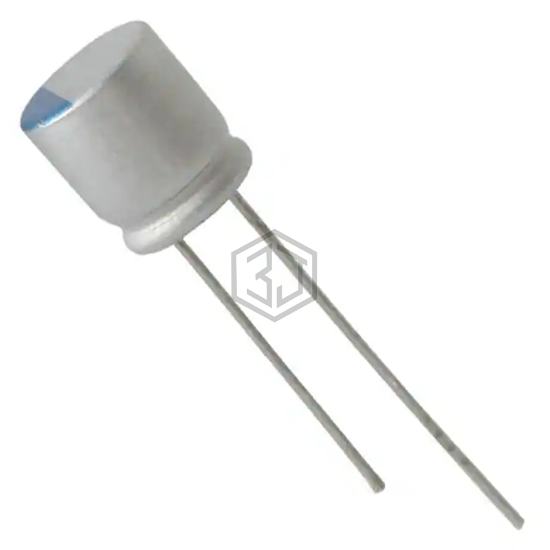

CAP ALUM POLY 82UF 20% 16V T/H
PLV1C820MCL1 is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 82UF 20% 16V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 7,964
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 35mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.8 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
PLV1C820MCL1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16SEP82M+TSS | Panasonic Electronic Components | CAP ALUM POLY 82UF 20% 16V T/H | 95% | View |
| PLF1D820MCL2TD | Nichicon | CAP ALUM POLY 82UF 20% 20V T/H | 79% | View |
| PLV1E820MDL1 | Nichicon | CAP ALUM POLY 82UF 20% 25V T/H | 74% | View |
| 826AVG050MFBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 82UF 20% 50V T/H | 64% | View |
| A759MS826M1JAAE050 | KEMET | CAP ALUM POLY 82UF 20% 63V T/H | 61% | View |
| 870025574004 | Würth Elektronik | CAP ALUM POLY 82UF 20% 25V T/H | 52% | View |
