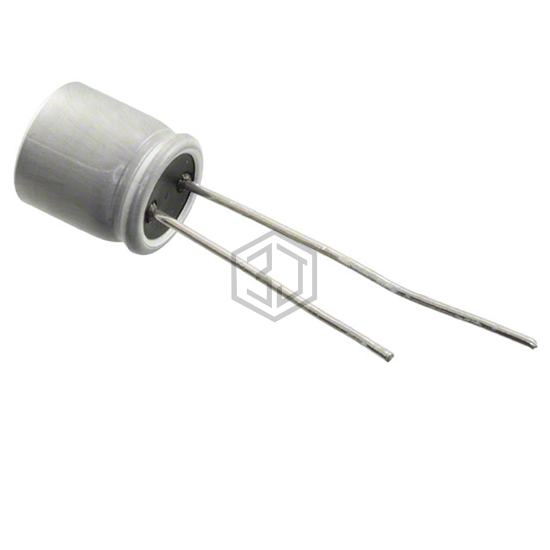

CAP ALUM POLY 820UF 20% 2.5V T/H
PLS0E821MCO6TD is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 820UF 20% 2.5V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can.
In Stock: 1,851
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 7mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 5.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APSC2R5ETD821MH08S | United Chemi-Con | CAP ALUM POLY 820UF 20% 2.5V T/H | 95% | View |
| PLF0E821MDO1 | Nichicon | CAP ALUM POLY 820UF 20% 2.5V T/H | 94% | View |
| 4SEPC820M | Panasonic Electronic Components | CAP ALUM POLY 820UF 20% 4V T/H | 75% | View |
| A758KK827M0GAAE015 | KEMET | CAP ALUM POLY 820UF 20% 4V T/H | 73% | View |
| UPE1C821MCG1012 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 70% | View |
| RHT0J821MDN1PH | Nichicon | CAP ALUM POLY 820UF 20% 6.3V T/H | 70% | View |
