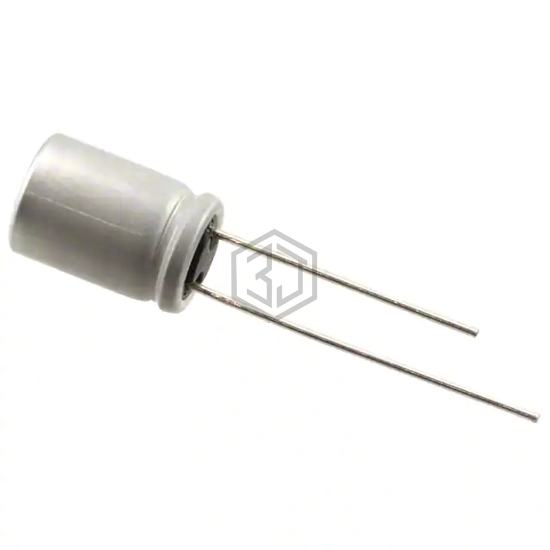

CAP ALUM POLY 100UF 20% 20V T/H
PLF1D101MDO2TD is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 100UF 20% 20V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 20 V, package / case Radial, Can.
In Stock: 2,326
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 22mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.32 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APSF160ELL101MFA5S | United Chemi-Con | CAP ALUM POLY 100UF 20% 16V T/H | 86% | View |
| UGP1C101MP26308 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 81% | View |
| A750KK107M1EAAE040 | KEMET | CAP ALUM POLY 100UF 20% 25V T/H | 81% | View |
| RNE1C101MDS1JX | Nichicon | CAP ALUM POLY 100UF 20% 16V T/H | 79% | View |
| RNE1C101MDS1PX | Nichicon | CAP ALUM POLY 100UF 20% 16V T/H | 79% | View |
| RHT1V101MDN1 | Nichicon | CAP ALUM POLY 100UF 20% 35V T/H | 76% | View |
