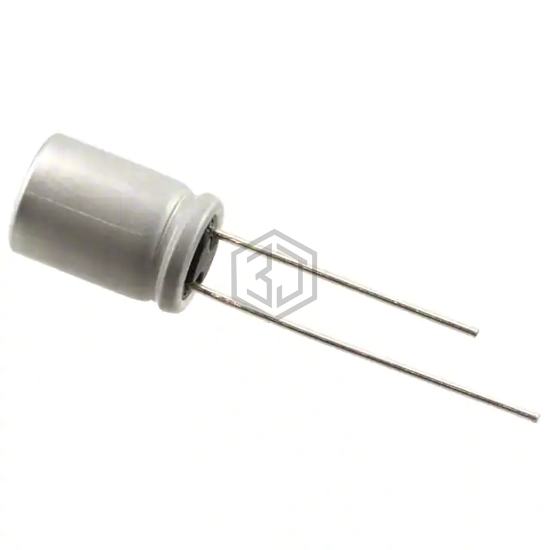

CAP ALUM POLY 270UF 20% 10V T/H
PLF1A271MDO1 is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 270UF 20% 10V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 224
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 8mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 4.9 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPE1C271MCG0808U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 80% | View |
| 16SEPC270MX | Panasonic Electronic Components | CAP ALUM POLY 270UF 20% 16V T/H | 80% | View |
| RNU1C271MDNASQ | Nichicon | CAP ALUM POLY 270UF 20% 16V T/H | 80% | View |
| 16SEPC270M+TSS | Panasonic Electronic Components | CAP ALUM POLY 270UF 20% 16V T/H | 80% | View |
| 870025374004 | Würth Elektronik | CAP ALUM POLY 270UF 20% 16V T/H | 78% | View |
| URP1C271MNN0808U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 76% | View |
