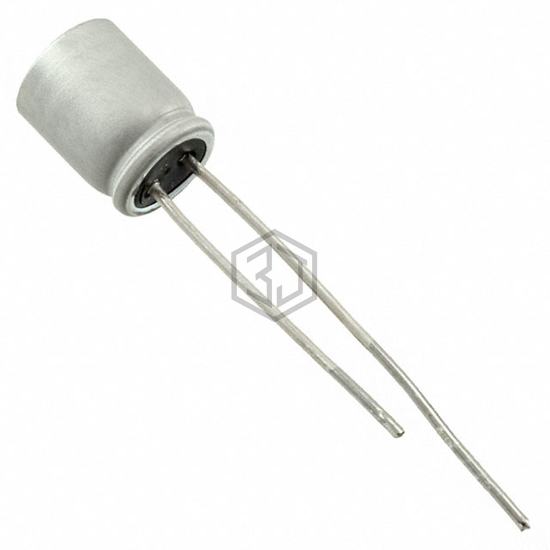

CAP ALUM POLY 560UF 20% 2.5V T/H
PLF0E561MCO8 is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 560UF 20% 2.5V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can.
In Stock: 9,299
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 7mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 280 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.374" (9.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPE0E561MCG0508 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 91% | View |
| 567ULR2R5MFF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 560UF 20% 2.5V T/H | 84% | View |
| RS80E561MDN1 | Nichicon | CAP ALUM POLY 560UF 20% 2.5V T/H | 83% | View |
| PLF0G561MDO1TD | Nichicon | CAP ALUM POLY 560UF 20% 4V T/H | 80% | View |
| 567ULR010MFF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 560UF 20% 10V T/H | 79% | View |
| 870025174007 | Würth Elektronik | CAP ALUM POLY 560UF 20% 6.3V T/H | 74% | View |
