CAP ALUM POLY 680UF 20% 6.3V T/H

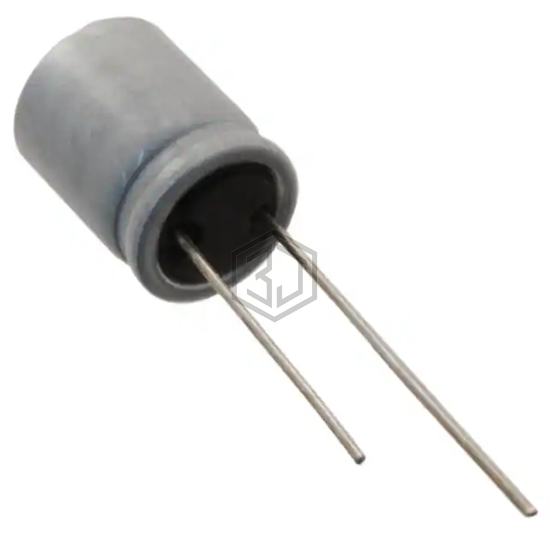

PLE0J681MDO1 is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 680UF 20% 6.3V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 5,416
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Polymer |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 5mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 6.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
PLE0J681MDO1 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RR50J681MDN1 | Nichicon | CAP ALUM POLY 680UF 20% 6.3V T/H | 98% | View |
| RL80J681MDN1 | Nichicon | CAP ALUM POLY 680UF 20% 6.3V T/H | 95% | View |
| 4SEPC680M+TS | Panasonic Electronic Components | CAP ALUM POLY 680UF 20% 4V T/H | 78% | View |
| A758KR687M1AAAE008 | KEMET | CAP ALUM POLY 680UF 20% 10V T/H | 75% | View |
| RR50E681MDN1KX | Nichicon | CAP ALUM POLY 680UF 20% 2.5V T/H | 71% | View |
| UPC1C681MP30811 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 61% | View |
