CAP ALUM POLY 560UF 20% 4V T/H

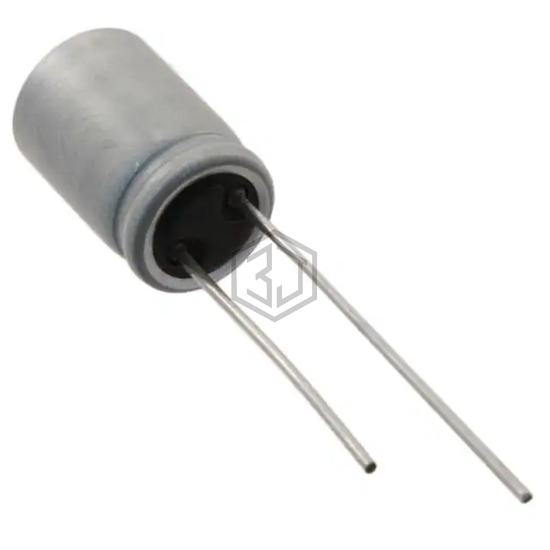

PLE0G561MCO1 is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 560UF 20% 4V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 4 V, package / case Radial, Can.
In Stock: 8,058
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Polymer |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 5mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
PLE0G561MCO1 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RR70G561MDN1 | Nichicon | CAP ALUM POLY 560UF 20% 4V T/H | 98% | View |
| RS80G561MDNASQPX | Nichicon | CAP ALUM POLY 560UF 20% 4V T/H | 94% | View |
| APSE4R0ETD561MF08S | United Chemi-Con | CAP ALUM POLY 560UF 20% 4V T/H | 94% | View |
| UPS0J561MCG0808 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 80% | View |
| 567ULR6R3MFF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 560UF 20% 6.3V T/H | 80% | View |
| 567UER6R3MFF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 560UF 20% 6.3V T/H | 74% | View |
Submit your RFQ for PLE0G561MCO1 and get a quote within 24 hours.
