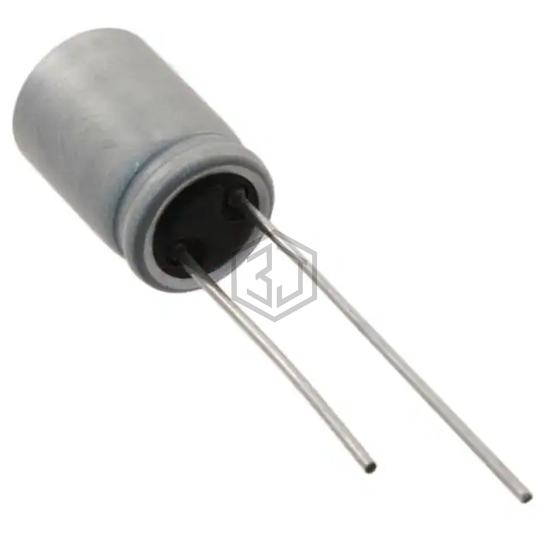

CAP ALUM POLY 820UF 20% 2.5V T/H
PLE0E821MCO6 is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 820UF 20% 2.5V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can.
In Stock: 336
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Polymer |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 5mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 6.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
