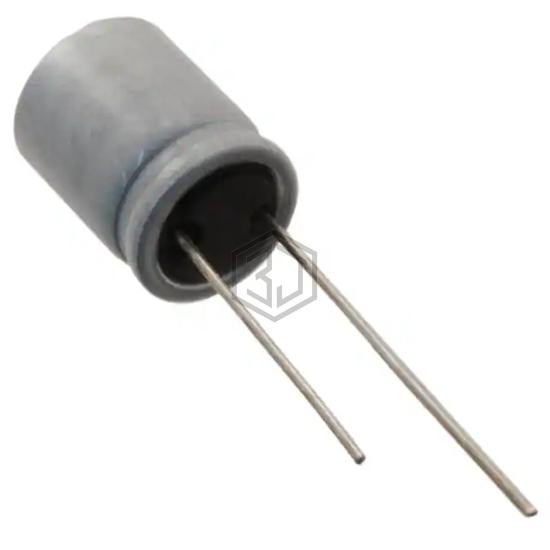

CAP ALUM POLY 1000UF 2.5V T/H
PLE0E102MDO1 is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 1000UF 2.5V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can.
In Stock: 3,993
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Polymer |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 5mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 7.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
PLE0E102MDO1 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PLF0E102MDO1TD | Nichicon | CAP ALUM POLY 1000UF 2.5V T/H | 97% | View |
| APSC2R5ELL102MHB5S | United Chemi-Con | CAP ALUM POLY 1000UF 2.5V T/H | 95% | View |
| APSA2R5ELL102MJB5S | United Chemi-Con | CAP ALUM POLY 1000UF 2.5V T/H | 94% | View |
| APSF2R0ELL102MF08S | United Chemi-Con | CAP ALUM POLY 1000UF 20% 2V T/H | 85% | View |
| A758KK108M0EAAE015 | KEMET | CAP ALUM POLY 1000UF 2.5V T/H | 85% | View |
| RNE1C102MDNASQ | Nichicon | CAP ALUM POLY 1000UF 20% 16V T/H | 66% | View |
Submit your RFQ for PLE0E102MDO1 and get a quote within 24 hours.
