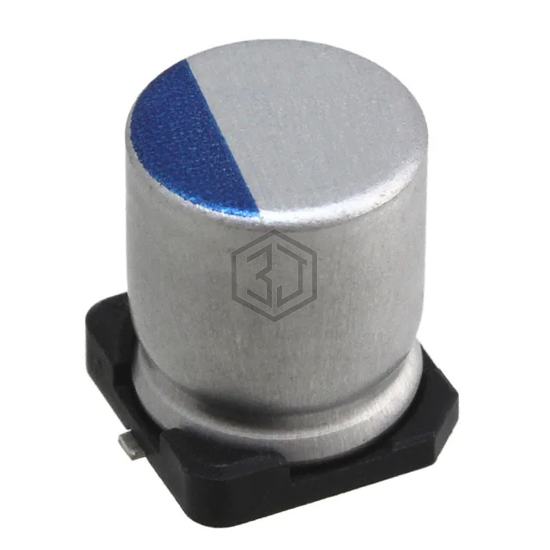

CAP ALUM POLY 150UF 20% 16V SMD
PCX1C151MCL6GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 150UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 6,626
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 28mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A768KE157M1ELAS029 | KEMET | CAP ALUM POLY 150UF 20% 25V SMD | 74% | View |
| A768KE157M1ELAE029 | KEMET | CAP ALUM POLY 150UF 20% 25V SMD | 74% | View |
| PCR1V151MCL1GS | Nichicon | CAP ALUM POLY 150UF 20% 35V SMD | 70% | View |
| APXH100ARA151MH70G | United Chemi-Con | CAP ALUM POLY 150UF 20% 10V SMD | 70% | View |
| APXD100ARA151MH70G | United Chemi-Con | CAP ALUM POLY 150UF 20% 10V SMD | 70% | View |
| 20SVPK150M | Panasonic Electronic Components | CAP ALUM POLY 150UF 20% 20V SMD | 69% | View |
