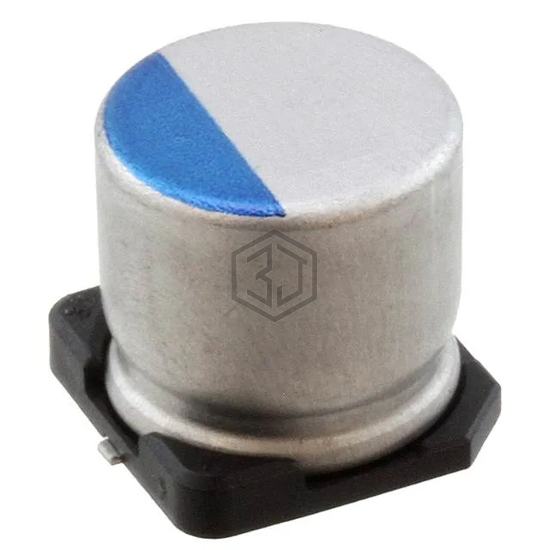

CAP ALUM POLY 68UF 20% 35V SMD
PCV1V680MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 68UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 2,971
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 37mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.8 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCR1V680MCL1GS | Nichicon | CAP ALUM POLY 68UF 20% 35V SMD | 87% | View |
| A768KE686M1GLAS038 | KEMET | CAP ALUM POLY 68UF 20% 40V SMD | 85% | View |
| PCV1H680MCL1GS | Nichicon | CAP ALUM POLY 68UF 20% 50V SMD | 73% | View |
| 50SVPK68M | Panasonic Electronic Components | CAP ALUM POLY 68UF 20% 50V SMD | 72% | View |
| 4SVPS68M | Panasonic Electronic Components | CAP ALUM POLY 68UF 20% 4V SMD | 68% | View |
| MAL218197502E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 68UF 20% 16V SMD | 65% | View |
