CAP ALUM POLY 150UF 20% 35V SMD

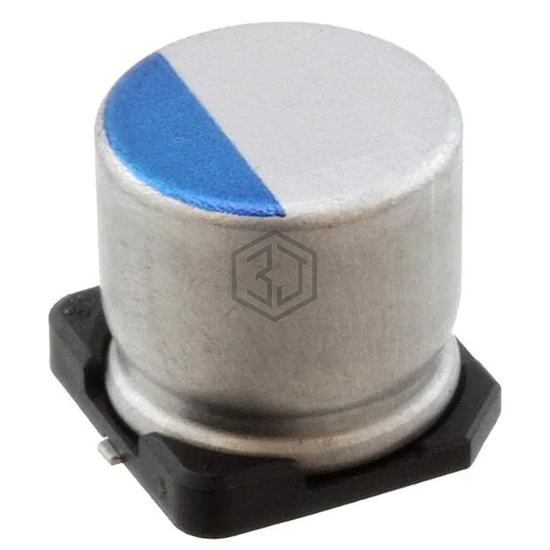

PCV1V151MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 150UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 6,022
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 28mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 4SVPC150MV | Panasonic Electronic Components | CAP ALUM POLY 150UF 20% 4V SMD | 70% | View |
| A765EB157M0JLAE020 | KEMET | CAP ALUM POLY 150UF 20% 6.3V SMD | 70% | View |
| APXH6R3ARA151MH70G | United Chemi-Con | CAP ALUM POLY 150UF 20% 6.3V SMD | 67% | View |
| 10SVP150M | Panasonic Electronic Components | CAP ALUM POLY 150UF 20% 10V SMD | 67% | View |
| 875075561006 | Würth Elektronik | CAP ALUM POLY 150UF 20% 25V SMD | 66% | View |
| MAL218097505E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 150UF 20% 16V SMD | 64% | View |
Submit your RFQ for PCV1V151MCL1GS and get a quote within 24 hours.
