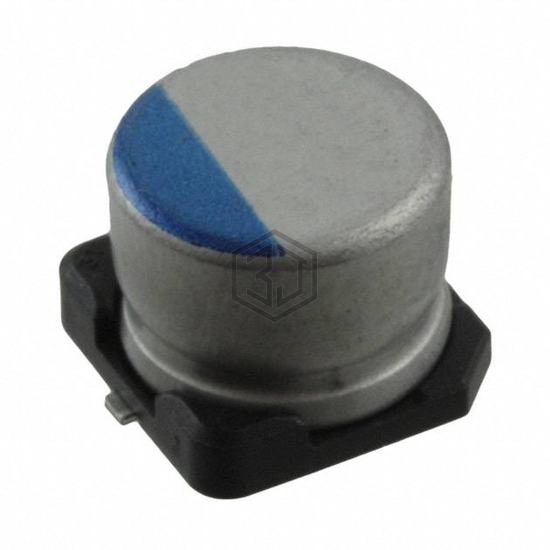

CAP ALUM POLY 15UF 20% 50V SMD
PCV1H150MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 15UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 1,243
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 15 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 63mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 875105744003 | Würth Elektronik | CAP ALUM POLY 15UF 20% 50V SMD | 90% | View |
| 875105240002 | Würth Elektronik | CAP ALUM POLY 15UF 20% 10V SMD | 69% | View |
| 94SVP156X0016B6 | Vishay Sprague | CAP ALUM POLY 15UF 20% 16V SMD | 66% | View |
| PCV1K150MCL1GS | Nichicon | CAP ALUM POLY 15UF 20% 80V SMD | 63% | View |
| 10SVPS15M | Panasonic Electronic Components | CAP ALUM POLY 15UF 20% 10V SMD | 59% | View |
| 10SVP15M | Panasonic Electronic Components | CAP ALUM POLY 15UF 20% 10V SMD | 59% | View |
