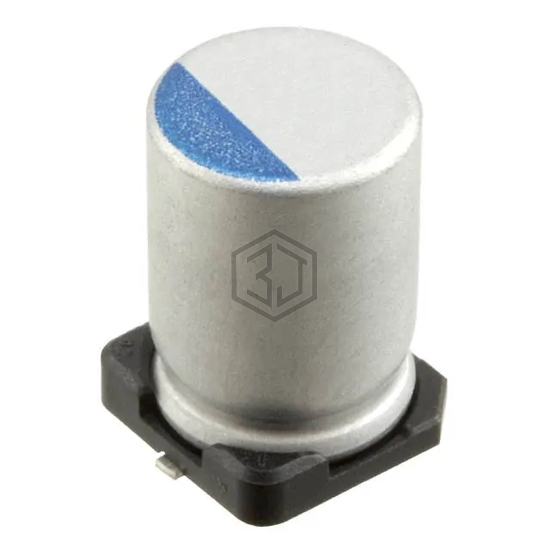

CAP ALUM POLY 220UF 20% 20V SMD
PCV1D221MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 220UF 20% 20V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 20 V, package / case Radial, Can - SMD.
In Stock: 57
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 27mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL218697555E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 220UF 20% 20V SMD | 86% | View |
| RPA1C221MCN1GS | Nichicon | CAP ALUM POLY 220UF 20% 16V SMD | 78% | View |
| APA0608221M010R | KYOCERA AVX | CAP ALUM POLY 220UF 20% 10V SMD | 69% | View |
| APXH2R5ARA221MF60G | United Chemi-Con | CAP ALUM POLY 220UF 20% 2.5V SMD | 69% | View |
| MAL218097303E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 220UF 20% 6.3V SMD | 61% | View |
| 6SVPA220MAA | Panasonic Electronic Components | CAP ALUM POLY 220UF 20% 6.3V SMD | 60% | View |
Submit your RFQ for PCV1D221MCL1GS and get a quote within 24 hours.
