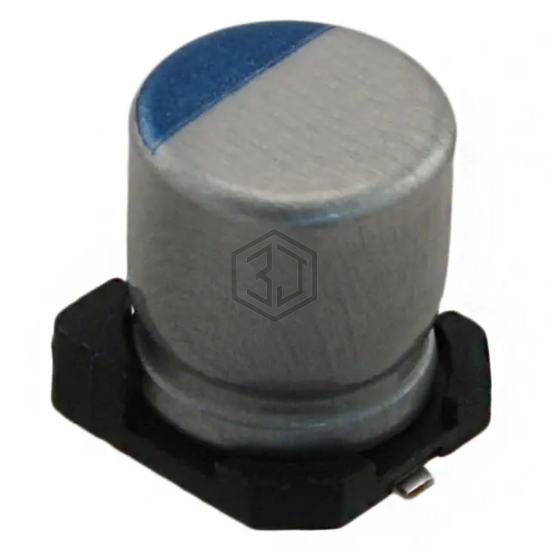

CAP ALUM POLY 33UF 20% 10V SMD
PCS1A330MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 33UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APXA100ARA330ME60G | United Chemi-Con | CAP ALUM POLY 33UF 20% 10V SMD | 99% | View |
| MAL218697551E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 33UF 20% 20V SMD | 65% | View |
| APD0606330M050R | KYOCERA AVX | CAP ALUM POLY 33UF 20% 50V SMD | 59% | View |
| A767KN336M1VLAE031 | KEMET | CAP ALUM POLY 33UF 20% 35V SMD | 59% | View |
| 875105444004 | Würth Elektronik | CAP ALUM POLY 33UF 20% 20V SMD | 54% | View |
| 4SVPS33M | Panasonic Electronic Components | CAP ALUM POLY 33UF 20% 4V SMD | 53% | View |
Submit your RFQ for PCS1A330MCL1GS and get a quote within 24 hours.
