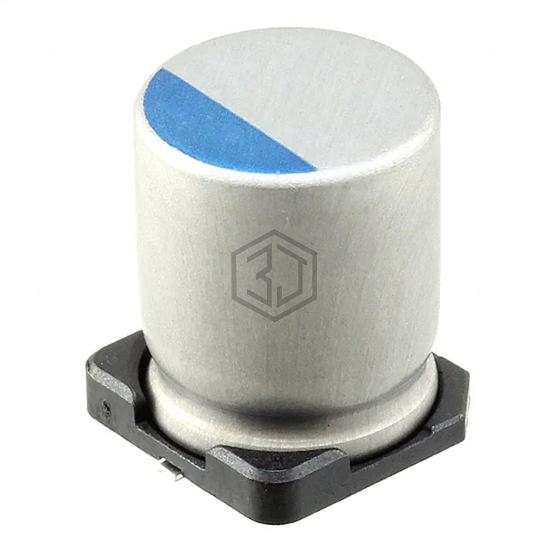

CAP ALUM POLY 33UF 20% 100V SMD
PCR2A330MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 33UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 2,177
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 28mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
PCR2A330MCL1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 80SXV33M | Panasonic Electronic Components | CAP ALUM POLY 33UF 20% 80V SMD | 85% | View |
| RKS1J330MCNAHGGS | Nichicon | CAP ALUM POLY 33UF 20% 63V SMD | 80% | View |
| RKS1J330MCNAHHGS | Nichicon | CAP ALUM POLY 33UF 20% 63V SMD | 80% | View |
| PCX1H330MCL1GS | Nichicon | CAP ALUM POLY 33UF 20% 50V SMD | 70% | View |
| MAL218697003E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 33UF 20% 35V SMD | 68% | View |
| MAL218697551E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 33UF 20% 20V SMD | 63% | View |
Submit your RFQ for PCR2A330MCL1GS and get a quote within 24 hours.
