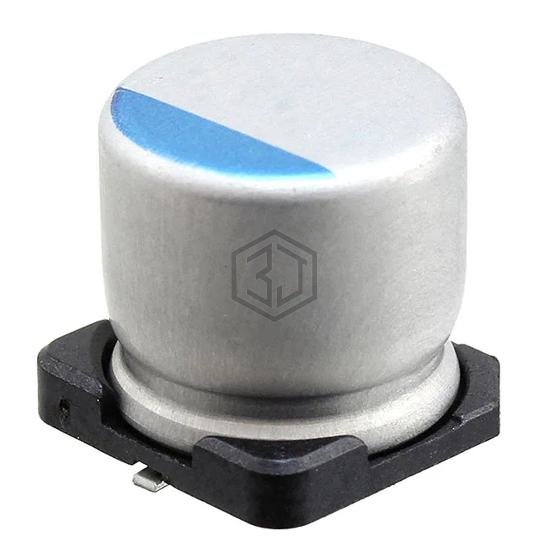

CAP ALUM POLY 22UF 20% 100V SMD
PCR2A220MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 22UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 7,355
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 39mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
PCR2A220MCL1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100SXV22M | Panasonic Electronic Components | CAP ALUM POLY 22UF 20% 100V SMD | 80% | View |
| APXH200ARA220MF60G | United Chemi-Con | CAP ALUM POLY 22UF 20% 20V SMD | 70% | View |
| PCX1H220MCS1GS | Nichicon | CAP ALUM POLY 22UF 20% 50V SMD | 69% | View |
| MAL218697601E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 22UF 20% 25V SMD | 69% | View |
| PCR1J220MCL1GS | Nichicon | CAP ALUM POLY 22UF 20% 63V SMD | 69% | View |
| PCX1H220MCL6GS | Nichicon | CAP ALUM POLY 22UF 20% 50V SMD | 69% | View |
Submit your RFQ for PCR2A220MCL1GS and get a quote within 24 hours.
