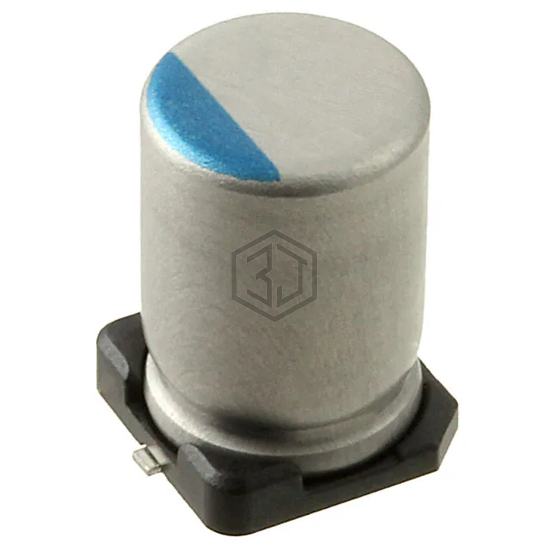

CAP ALUM POLY 18UF 20% 100V SMD
PCR2A180MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 18UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 4,105
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 18 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 42mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
PCR2A180MCL1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100SXV18MX | Panasonic Electronic Components | CAP ALUM POLY 18UF 20% 100V SMD | 85% | View |
| 100SXV18M | Panasonic Electronic Components | CAP ALUM POLY 18UF 20% 100V SMD | 77% | View |
| RKS1J180MCNAFGGS | Nichicon | CAP ALUM POLY 18UF 20% 63V SMD | 74% | View |
| RKS1H180MCNAFEGS | Nichicon | CAP ALUM POLY 18UF 20% 50V SMD | 69% | View |
| PCX1V180MCS1GS | Nichicon | CAP ALUM POLY 18UF 20% 35V SMD | 61% | View |
| 50SVT18M | Panasonic Electronic Components | CAP ALUM POLY 18UF 20% 50V SMD | 52% | View |
Submit your RFQ for PCR2A180MCL1GS and get a quote within 24 hours.
