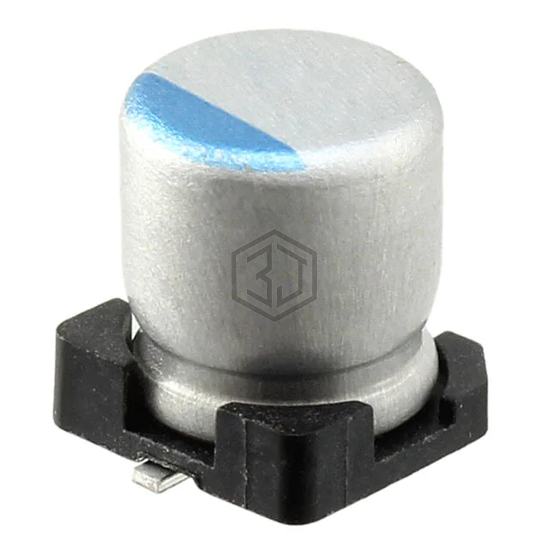

CAP ALUM POLY 33UF 20% 25V SMD
PCR1E330MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 33UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 1,299
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 75mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 700 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
PCR1E330MCL1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCX1D330MCL1GS | Nichicon | CAP ALUM POLY 33UF 20% 20V SMD | 83% | View |
| 50SVPK33M | Panasonic Electronic Components | CAP ALUM POLY 33UF 20% 50V SMD | 65% | View |
| A768EB336M1GLAS045 | KEMET | CAP ALUM POLY 33UF 20% 40V SMD | 64% | View |
| A768EB336M1GLAE045 | KEMET | CAP ALUM POLY 33UF 20% 40V SMD | 64% | View |
| 63SXV39M | Panasonic Electronic Components | CAP ALUM POLY 39UF 20% 63V SMD | 54% | View |
| A768KE336M1HLAE042 | KEMET | CAP ALUM POLY 33UF 20% 50V SMD | 51% | View |
Submit your RFQ for PCR1E330MCL1GS and get a quote within 24 hours.
