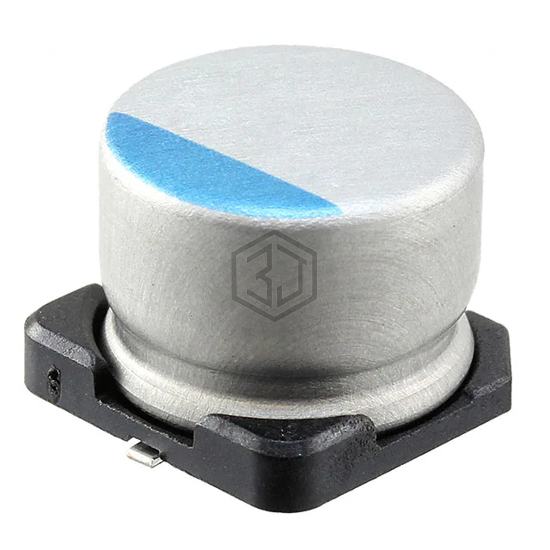

CAP ALUM POLY 220UF 20% 25V SMD
PCR1E221MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 220UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 5,347
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 24mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A768KS227M1VLAE024 | KEMET | CAP ALUM POLY 220UF 20% 35V SMD | 85% | View |
| A768KE227M1DLAE029 | KEMET | CAP ALUM POLY 220UF 20% 20V SMD | 82% | View |
| A768KE187M1ELAE029 | KEMET | CAP ALUM POLY 180UF 20% 25V SMD | 81% | View |
| APXH4R0ARA221MH70G | United Chemi-Con | CAP ALUM POLY 220UF 20% 4V SMD | 60% | View |
| APXH6R3ARA221MH70G | United Chemi-Con | CAP ALUM POLY 220UF 20% 6.3V SMD | 60% | View |
| MAL218697506E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 180UF 20% 16V SMD | 52% | View |
Submit your RFQ for PCR1E221MCL1GS and get a quote within 24 hours.
