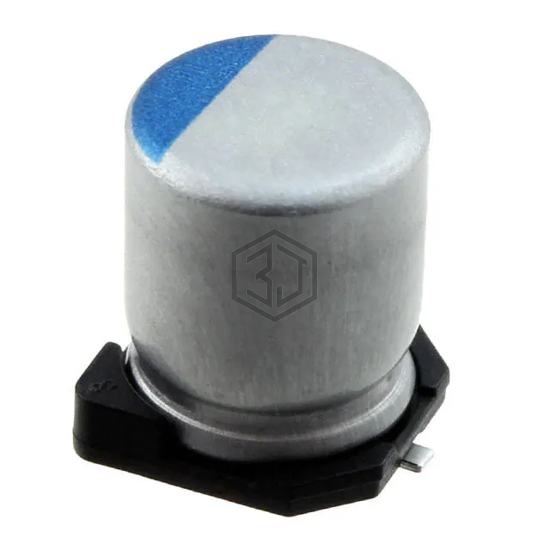

CAP ALUM POLY 100UF 20% 25V SMD
PCR1E101MCL4GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 100UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 8,260
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 27mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
PCR1E101MCL4GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A769KE107M1VLAS031 | KEMET | ALUMINUM ELECTROLYTIC, SOLID POL | 86% | View |
| A768KE107M1VLAE036 | KEMET | CAP ALUM POLY 100UF 20% 35V SMD | 82% | View |
| PCX1C101MCS1GS | Nichicon | CAP ALUM POLY 100UF 20% 16V SMD | 80% | View |
| PCX1V101MCS1GS | Nichicon | CAP ALUM POLY 100UF 20% 35V SMD | 73% | View |
| MAL218697006E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 100UF 20% 35V SMD | 65% | View |
| A768MS107M1HLAV024 | KEMET | CAP ALUM POLY 100UF 20% 50V SMD | 62% | View |
Submit your RFQ for PCR1E101MCL4GS and get a quote within 24 hours.
